Cryptoucan™ Manufacturing: Keypad Testing

Written by Lída Hrnčířová on 2019-08-08

cryptoucan

Have you ever wondered how does the testing process of Cryptoucan™ look like? Well, here's your chance to see how we're testing our keyboards. Today's article includes recordings of the robot we built for this - that's something you need to see!

We are carefully testing every part of Cryptoucan™ - software as well as hardware. Most of the firmware can be tested using usual methods of software engineering (CppUTest[1] for example).

But when it comes to hardware, everything gets a bit more complicated. We've already covered the testing process of Cryptoucan's display in our previous blog posts Simple CV in Racket[2] and Cryptoucan™ Manufacturing: LEDs Revisited[3].

Another important feature to test is keyboard. Doing this manually is extremely labor intensive because there are many scenarios to cover.

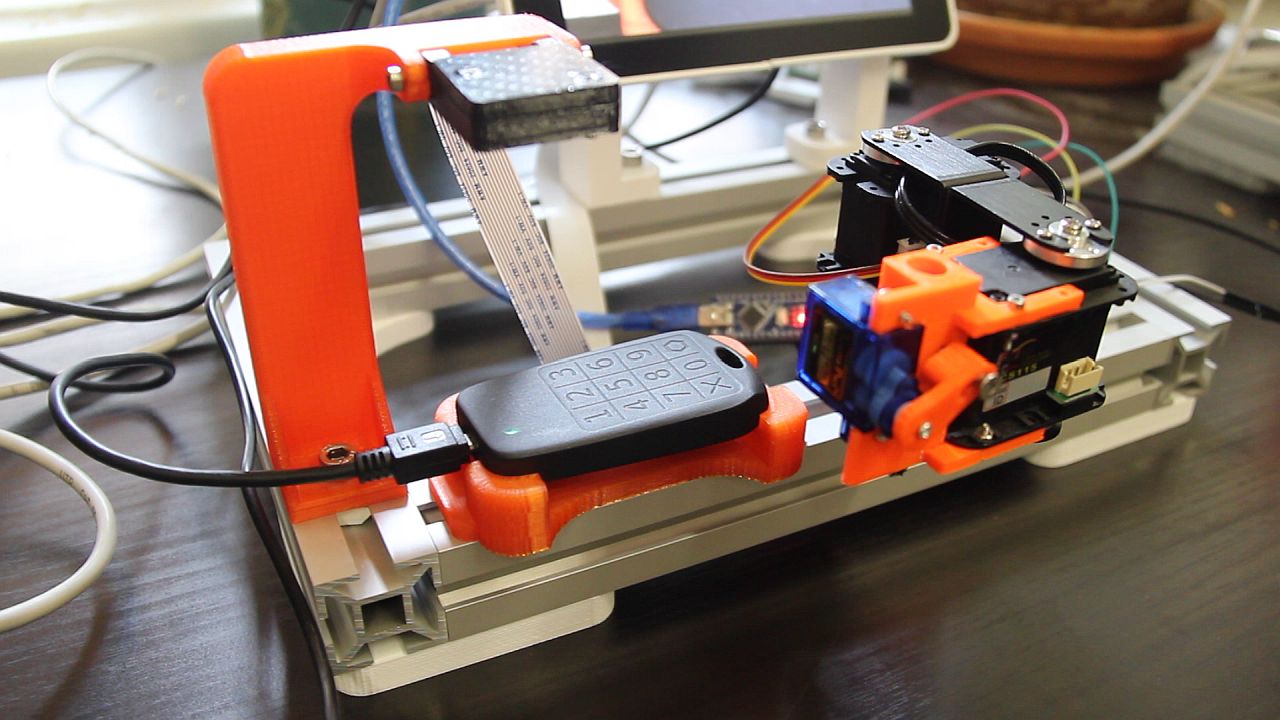

Picture 1: Cryptoucan So we built a robot to speed things up!

If you want to see the robot in action, click here.

The Robot---------

The most straightforward approach to emulating user input on keypad is to touch keys with a finger-like object. Keypad is capacitive, so we used a short steel rod with a bit of conductive foam on the tip as a "finger".

"Finger" is mounted on a SCARA[4], which is assembled from 3D printed parts and some hobby servo motors controlled by Arduino. There's a compensation for servo gear backlash in software, as our application does not need extreme precision.

Picture 2: The Robot

Picture 3: Raspberry Pi display You can watch all the parts cooperating in this exclusive video!

Video 1: Cryptoucan™ Manufacturing: Keypad Testing

That's all for this week, thank you very much for reading!
